The chequered flag at the Australian Grand Prix, in Adelaide on November 7, will signal not only the end of the 1993 Grand Prix Season, but as Rob Williams reports, the end of an era in which computer technology has dominated Formula 1 racing.

The 1992 and 1993 Grand Prix seasons have seen computer technology become the driving force behind most of the innovations that have allowed Frank Williams’ Canon Williams team to dominate the Formula 1 constructors’ title. Leading edge telemetry systems, active suspension, computer-assisted power steering, computer controlled anti-lock braking systems (ABS), electronic transmissions and traction control have become de rigueur in Formula 1.

‘The track engineer in front of his screen is as much part of the race as the driver behind the wheel,’ according to Denis Chevrier, the engineer in charge of Alain Prost’s engine.

Today, the Canon Williams/Renault team is without doubt the dominant force in Formula 1. A look at the team’s technology and that of its technology partners provides an insight into the very best technology Formula 1 has to offer.

Computer technology, sophisticated electronics and telecommunications have been skilfully blended into a sophisticated telemetry system with the capacity to record vast amounts of data on each aspect of engine performance, suspension, aerodynamics, brake pressure, G-forces and so on. This information is transmitted to purpose built telemetry stations in the pits, where the data is analysed by teams of engineers surrounded by some of the most powerful computer systems currently available.

During the mid-1960’s a Firestone engineer, Dave Trevett, modified an aircraft flight data recorder to record suspension movement, lateral and longitudinal G-Forces and other rudimentary parameters during practice and test sessions. The data was printed on strips of paper that would later be analysed by engineers using a pencil and ruler with notations being made in the margins of the printout. Scuderia Ferrari made extensive use of this technology during the late 1960’s.

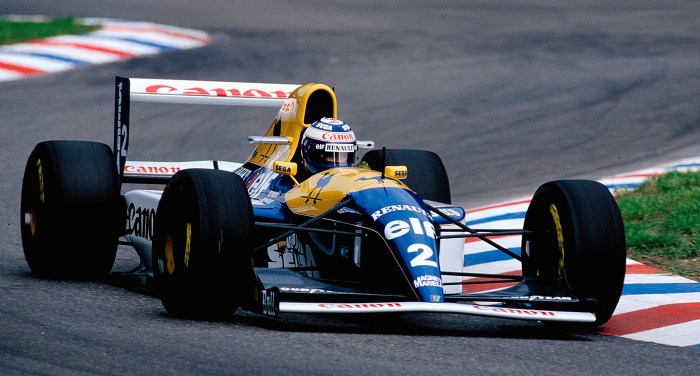

Today, beneath the stunning yellow-blue-white livery of the Patrick Head and Adrian Newey designed Williams FW15C, Magneti Marelli sensors are connected to the multitude of systems and components that are monitored by the Renault and Canon Williams engineers. The data is sent to a Magneti Marelli data acquisition unit, mounted behind the driver, which transmits the encrypted data via a HF radio signal to the Bull HTX 3D telemetry workstation in the pits. Up to half a megabyte is transmitted in under two seconds.

Parameters such as speed, engine revs, injection time for each cylinder, oil and coolant temperature, hydraulic pressures, fuel consumption and pressure on aerodynamic surfaces are among those transmitted by the onboard computer. Engineers can assess the data while the car is on the circuit. Adjustments are made on a portable computer and downloaded to the Engine Management Unit (EMU) when the car is next brought into the pits.

The speed of the computer systems processing the telemetry data is critical. With a lap time of around one minute, all available data must be processed in only a few seconds. The results are then displayed almost immediately to give the engineers maximum time to analyse the output and make decisions on necessary changes. Bull Information Systems provides the hardware and software for all aspects of the engine development cycle and most aspects of the testing and tuning of the chassis.

Bull (the French based computer giant) and Renault have entered into a partnership to computerise the engine test benches at Renault Sport’s Viry-Châtillon plant. It is here that the RS5 V10 engines are built and tested before being delivered to both the Williams and Ligier teams.

Sensors fitted to various parts of the engine transmit data to the Central Acquisition Unit. Processing and display are handled by the Bull RISC-based workstations which have been specifically designed to run input/output, numeric and graphics intensive scientific and industrial application software. The Viry-Châtillon systems are able to store and process huge amounts of data over time and provide the engineers with both a display and hard copy of both specific measurements and trend curves.

With regulations limiting the number of fresh engines used by a two car team during a season, it is vital to know when an engine has reached the point at which it will fail.

Elf, a long time supplier of racing fuels and lubricants, has recently commissioned a mobile analysis laboratory to analyse fuel and oil samples from the cars during race preparation. Information from the analysis equipment is downloaded to a Zenith Data Systems laptop for assessment by the engineers.

‘The advantage is in having a computer that can store the last two years analyses,’ notes Valerie Jorquera, Elf’s technical manager. ‘The analyses are studied from a statistical point of view, which means we can now calculate with sufficient accuracy the moment an engine is likely to give way.’

---
